2023-2024 VanCraft User Manual PDF
NOTE: This User Guide is general in coverage of the vehicle components and systems. Some
of the exact equipment or functions may have been changed due to continuous product
improvement. Your vehicle might differ slightly from the information included herein.
Descriptions, images, and specifications were correct at the time of printing, but VanCraft
LLC reserves the right to make changes, without notice, and without obligation to install the
same products previously manufactured. In addition to this User Guide, your Camprervan
came with the manufacturer’s user manuals for various appliances and systems in your
Campervan. Many of these systems are covered in this User Guide, but some information
may only be found in the manufacturer’s manuals. Please keep these documents handy
should you have questions
Your VanCraft Campervan was built on a Mercedes-Benz® Sprinter chassis. You will find
references throughout this User Guide to the Sprinter chassis and Sprinter operating
instructions provided with the vehicle. Please refer to the Sprinter operating instructions for
information regarding the operation, safety, and maintenance of the original vehicle chassis.
SAFETY MESSAGES USED IN THIS USER GUIDE
This User Guide alerts you to common safety or vehicle hazards using the following labels:
WARNING Indicates a hazard that may endanger your health or life, or the health or life of others.
Pre-Delivery Inspection: VanCraft Campervans takes pride in providing a high quality
campervan product. Our team inspects every Campervan closely before delivery. Our team is
responsible for completing a comprehensive pre-delivery inspection and correcting any
issues with the chassis or Campervan components prior to delivery. Before driving, familiarize
yourself with all local and state laws as different areas may have laws that apply to your
Campervan.
GENERAL WARNINGS
● All seats should be locked in the travel position while the vehicle is moving.
Passengers should only use seats with seatbelts while the vehicle is moving.
● Child restraints should be installed properly according to the manufacturer’s
instructions.
● Never let passengers stand or kneel on seats while the vehicle is moving.
● All tables should be stowed when the vehicle is moving.
● Verify doors and drawers are shut and latched, where applicable, when the vehicle is
moving.
● Passengers should never use the beds while the vehicle is moving.
● Inspect the fire extinguisher monthly and before each trip for proper charge and
operating condition.
● Adverse weather conditions and extremes in terrain may affect the handling and/or
performance of your vehicle. Refer to your Sprinter Manual for more information.
WARNING
Operating, servicing and maintaining this vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine except as necessary, service
your vehicle in a well-ventilated area and wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
Pregnant Women never place a shoulder belt behind your back or under your arm. Adjust the
lap belt across your hips/pelvis and below your belly. Place the shoulder belt across your
chest (between your breasts) and away from your neck.
WARNING
This motorhome has been designed, manufactured and tested with concern for the
protection of its occupants. We recommend you perform the following inspections for your
safety and the safety of your passengers before starting your vehicle.
WHEELS – Inspect for damage and check lug nuts for tightness.
TIRES – Inspect for wear and damage and check for recommended air pressure.
LIGHTING – Test for proper operation of all interior and exterior lights including dash lights,
headlights, and turn signals.
EXITS –Test both locks on the main entrance door for ease of operation and instruct
passengers how to use both means of exit.
SEAT BELTS – Direct passengers to designated seats, be certain swivel seats are locked
into position, and require use of a seat belt. See operator’s manual for occupancy and
weight restrictions.
APPLIANCES – Turn off and latch or lock doors where provided.
LOOSE PARCELS – Store securely.
CARBON MONOXIDE WARNING
WARNING
Avoid inhaling exhaust gasses, as they contain carbon monoxide, which is a colorless,
odorless, and poisonous gas. Death or serious injury can result.
Combustion engines emit carbon monoxide (CO), which can be harmful or potentially deadly.
Keep CO out of the cabin by maintaining the vehicle exhaust and the ventilation systems.
Have the exhaust system inspected from time to time by a qualified RV service center:
● When the vehicle is serviced
● If the sound of the vehicle exhaust system changes
● When damage occurs to the exhaust, underbody, or rear of the vehicle
To allow for proper operation of the vehicle’s ventilation system, keep the front grill clear of
snow, leaves, or other obstructions.
WARNING
Do not occupy a parked vehicle with the engine running for an extended period. Do not run
the engine in confined areas, such as a garage, except to move the vehicle in or out of the
area.
SMOKE AND CARBON MONOXIDE ALARM
Your campervan is equipped with an alarm that will sound if it detects smoke or carbon
monoxide in your vehicle. This system should be tested after the vehicle has been in storage,
before each trip, and at least once per week during use by pressing the Test/Reset button.
WARNING
Test combination smoke / carbon monoxide alarm operation after the vehicle has been in
storage, before each trip, and at least once per week during use. Failure to do so can result
in death or serious injury.
California Proposition 65 Warning: Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals known to the state of California to cause
cancer and reproductive harm. Wash hands after handling.
PINCH HAZARDS
Any time items open and close, like a door or cabinet, or move, like a rotating or folding seat,
there is a potential pinch point. Avoid any moving areas of a mechanism to prevent injury.
FORMALDEHYDE INFORMATION Like in every home and building, some materials in this Campervan may emit formaldehyde.
Eye, nose, and throat irritation, headache, nausea, and asthma-like symptoms, including
shortness of breath have been reported as a result of formaldehyde exposure. Reaction to
formaldehyde exposure may vary among individuals and research is continuing on the
possible long-term effects of exposure to formaldehyde. Inadequate ventilation may allow
formaldehyde and other contaminants to accumulate in indoor air. Ventilate your RV before
and during each use using the windows, exhaust fan or air conditioning system. If you have
any questions regarding formaldehyde, consult your doctor.
MOLD
Mold is a natural part of our environment. It plays an important role in helping break down
dead leaves and organic matter into fertile soil. The very nature of your RV being outside will
bring it into contact with mold, but indoor mold growth should be avoided.
To reduce mold growth, reduce the things in your RV that could allow mold to grow. Mold only
needs small amounts of moisture and nutrients from food spills or grease, or it could survive
on as little as a fine layer of dirt or dust. Keep the inside of the vehicle as clean and dry as possible. Moisture plays a large part in mold
growth. Don’t allow condensation to build up inside the vehicle and keep the interior humidity
levels low. Proper ventilation helps and using the air conditioner and or the auxil can remove
excess moisture from the air.
Avoid and repair leaks immediately as they are a major contributing factor to mold growth. If
mold develops, clean the area with soapy water followed by a bleach solution. If the items
cannot be treated, they should be removed and replaced.
MOLD AND WARRANTY CLAIMS
If VanCraft determines that mold in your campervan was caused by a manufacturing defect
reported to VanCraft within the warranty period, VanCraft will clean the affected area(s) and
/or replace items it deems necessary. This is the only circumstance in which VanCraft will
cover mold under its limited warranty.
VanCraft, LLC will not assume responsibility for mold deemed to be a result of a user’s lack of
timely and appropriate action to mitigate circumstances should a problem occur.
CONDENSATION
When it is humid in the van, condensation can develop inside the windows which can lead to
damage if not properly addressed. It is best to keep moisture low with proper ventilation, but
under certain circumstances ice can form if excessive condensation gets trapped between a
window shade and the glass. If the ice or excessive sweating is not addressed and dried
properly, it can melt and drip into the dashboard, electronics, upholstery or other areas that
water may damage. Do not allow water to enter sensitive areas by carefully removing ice and
drying the moisture to prevent damage.
TIP: When using window shades, position the shades as close to the glass as possible to
prevent moisture build up. VanCraft, LLC does not assume responsibility for damage caused
by water dripping into the dashboard, upholstery or other areas related to condensation or
ice melting into those areas.
ELECTRICAL CAUTIONS
WARNING
Careless handling of electrical components can be fatal. Never touch or use electrical
components or appliances while feet are bare, while hands are wet, while standing in water,
or on wet ground.
Avoid overloading electrical circuits and only replace fuses or circuit breakers with those of
the same size and amperage rating. Never use a higher rated fuse or breaker. Use caution
when handling or working near energy storage systems and electrical components. Always
remove any jewelry and wear protective clothing and eye covering and avoid creating sparks.
GENERAL VEHICLE INFORMATION
LOADING THE RV
Before driving, always secure loose items which can become dangerous projectiles in sudden
stops, quick maneuvers, and accidents. Distribute weight evenly to help vehicle handling.
Never exceed the GVWR (Gross Vehicle Weight Rating) or the GAWR (Gross Axle Weight
Rating). GVWR is the total allowable weight of the vehicle, including passengers, cargo
(including water), and possible tongue weight of a towed trailer.
The GAWR is the weight the axle is rated for. The combined measured weight at the front
wheels plus the measured rear wheel weight should never exceed GVWR. Additionally, never
exceed the individual tire weight ratings. Never exceed the GCWR (Gross Combination
Weight Rating), the maximum total weight of the vehicle and anything towed.
WEIGHING THE RV
Weigh your fully loaded van to determine the proper load distribution of cargo in your vehicle.
Weigh fully loaded, including fuel, fresh water, food, bedding, passengers, gear and other
items you will carry.
FINDING A SCALE
Commercial truck stops usually have scales, but there are other commercial scales around
that may charge a small fee.
WEIGHING PROCEDURE
Measure the front axle weight, rear axle weight, total vehicle weight. To get a front axle
weight, drive only the front wheels onto the scale. To get a total vehicle weight, drive all
wheels onto the scale. To get a rear axle weight, drive the rear wheels only onto the scale.
Compare these measurements to the GVWR, and the GAWR for the front and rear axles,
found on the Vehicle Certification label inside the driver door area.
TOWING WITH YOUR VAN
The Sprinter is rated to tow a maximum load of 5,000 lbs. Towing capacity may be less than
the hitch rating based on the weight of your loaded vehicle. When towing, do not exceed the
GVWR, the rear axle GAWR, or the chassis GCWR by the combined loaded weight of the
VanCraft Campervan and the towed item. Towing will affect vehicle handling, durability, and
fuel economy. Exceeding any of the listed Gross Weight Ratings will result in unacceptable
overall vehicle performance and, potentially, danger.
HITCH ASSEMBLY
If a towing brake system is required, we recommend use of a modulated braking device
versus a surge-style system. The actual tongue weight should never exceed the stated hitch
vertical load. This is typically defined as the tongue weight of a towed vehicle hitch, boat
trailer tongue weight, or a receiver-mounted carrier rack.
ROADSIDE EMERGENCY
Due to the weight and size of the vehicle, we recommend you seek professional road service
to help in the event of a roadside emergency such as a flat tire. If the situation requires you to
change a flat tire yourself, be very careful and read all the information in your Sprinter
Operating Instructions regarding the changing of a tire. Check your tires for proper inflation
before each trip, and at least once a month, using an accurate tire gauge.
IF YOU GET A FLAT TIRE
Do not panic. Grip the steering wheel firmly and steer the vehicle as straight as possible. You
may need to counter-steer to compensate for pull created by the failed tire. Do not
stomp/slam on the brakes. Do not jerk your foot off the accelerator. Just ease back on the
accelerator slowly and gently to continue the momentum. The deflated tire will slow the
vehicle. If you must change lanes to get to a safe stopping place, use your signals to warn
other motorists and change lanes smoothly after you are certain the lane is clear. Let the
vehicle coast to a stop, gently steering to a safe stopping place, then activate the hazard
flashers and exit the vehicle carefully. Set out flares or other warning devices.
RECOVERY TOWING
Due to modifications of the RV from its original chassis specifications, notify the towing
service of the height and weight of the RV (Height is 9’+) as it may change how they recover
the vehicle. This information is found on the Vehicle Certification Label. Refer to the Sprinter
Operating Instructions on towing the Sprinter. VanCraft, LLC does not assume responsibility
for damage incurred while towing this vehicle.
ENGINE OVERHEATING
If you see or hear steam escaping from the engine compartment or have reason to suspect
an engine overheating condition, pull the vehicle over, stop the engine, get passengers out of
the vehicle and consult the Sprinter Operating Instructions.
JUMP STARTING
If you wish to try jump-starting the engine, see the Sprinter Operating Instructions.
DRIVING YOUR CAMPERVAN
See your Sprinter Operating Instructions for information on items like driving controls,
instrumentation, cruise control, climate controls, gauges, wipers, lights, safety belts, and
other chassis related features.
FRONT SEATS
The front seats of your van are adjustable in various ways, the passenger seat also swivels to
face the rear of the vehicle. See your Sprinter Operating Instructions for more information on
front seat adjustments.
NOTE: Damage to interior door panels may result if seats are swiveled toward the doors. Do
not turn the passenger seat clockwise, adjust the seat all the way toward the front of the van
before spinning.
NOTE: When the vehicle is in motion, the driver and passenger seat must be locked in the
forward position.
SEAT BELTS
All seating positions have seat belts which should be used anytime the vehicle is in motion.
WARNING
Never sit anywhere in the van that does not have a seatbelt while the vehicle is in motion.
NOTE: After any serious accident, all seat belts in use during the accident must be inspected
and replaced if necessary
CHILD RESTRAINTS
When properly used, child restraint systems reduce the risk of injury in an accident or sudden
maneuver. If installed or used incorrectly, child restraints can increase the risk of injury. Refer
to your child restraint system’s instructions for installation instructions.
NOTE: Rear bench seating can be used with a child restraint system designed for use with
lap-only style seat belts.
NOTE: The rear bench seating does not have a ratcheting style belt retractor.
FACTORY DASH CLIMATE CONTROLS
The Sprinter dash climate controls were designed to heat and cool the front cabin area only,
not the entire cabin. See Sprinter Operating Instructions for details and instructions covering
dash A/C, heat, and defrost functions. See the Cabin Climate Control System section of this
User Guide for details regarding the VanCraft Campervan heating and cooling systems.
Infotainment Systems and Driver Assist Features Consult the Sprinter Operating Instructions
for information and operation instructions regarding your Sprinter infotainment, radio,
navigation, Bluetooth, cameras, external sensors and the like.
VEHICLE MAINTENANCE
The VanCraft Short and Long Wheelbase vans are built on a Sprinter chassis and require
routine maintenance and service outlined in the Sprinter Operating Instructions
FRONT AXLE ALIGNMENT AND TIRE BALANCING
Once the campervan is fully loaded, get the alignment checked and adjusted, if necessary.
After that, the alignment should be periodically inspected to help prevent uneven tire wear.
Excessive or abnormal tire wear may indicate worn or misaligned suspension, an unbalanced
tire, or other problems. Alignment can also be affected by incidents such as hitting a curb,
pothole, or railroad track.
NOTE: Have your dealer, or RV service technician, inspect your vehicle’s suspension and
steering components periodically for misalignment or wear. Refer to the Sprinter Operating
Instructions provided with your vehicle for further information.
TIRES
This vehicle came with tires different from the original Sprinter and has a modified tire label in
the driver door area with information regarding proper tire pressures.
NOTE: Improper tire pressure can cause abnormal or premature wear, affect vehicle handling,
and fuel economy. The wheel lug bolts needed to be checked and torqued periodically and
any time the wheels were removed and reinstalled.
SPARE TIRE
Refer to the Sprinter factory manual for information on accessing the spare tire.

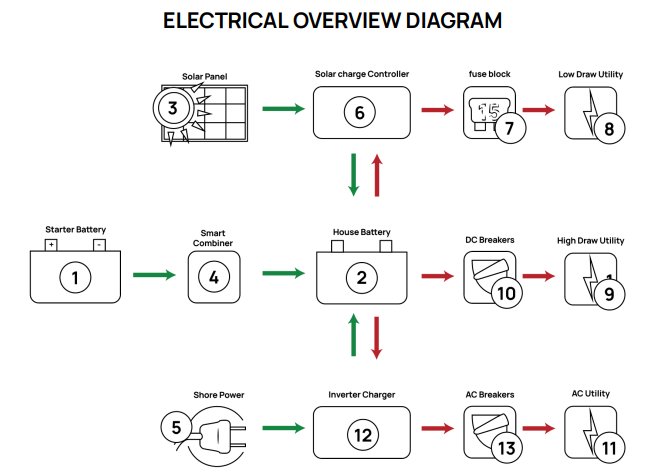

ELECTRICAL SYSTEM OVERVIEW
Our robust power system is designed to provide fully self-sustainable electricity for
comfortable camping anywhere. This simple, maintenance-free system is made up of three
main components: Battery, Charge, and Utility.
USING YOUR ELECTRICAL SYSTEM
For the most part, your van's electrical system needs no management or attention to operate,
keeping your camping experience as simple as possible. Here are some helpful tips for
monitoring and running the major parts covered in the Electrical System Overview.

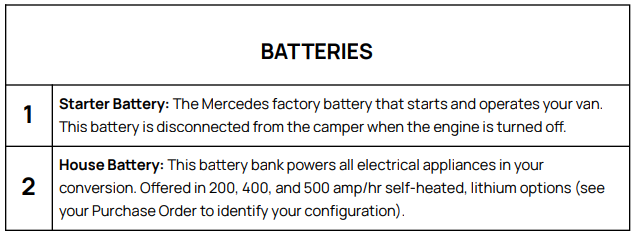

HOUSE BATTERY
Your self-heated Lithium Battery Bank comes equipped with an onboard battery
management system OR BMS. This means your batteries need little to know management to
stay healthy in all climates. Your batteries state of charge, incoming charge current, and
outgoing utility draw can be viewed on the battery monitor screen. This screen is located on
the bench end cabinet next to the side entry slider door. An extensive manual for both your
battery and monitor screen can be found in the “helpful links” section of this manual.
Maximize your battery performance: To keep your battery as topped off as possible,
Always use appliances in their most power efficient modes (“ecco” for air conditioning,
“Low Speed” for your fridge). When not using appliances make sure they are turned off -
this is especially important for the Inverter-charger. Use High Draw appliances sparingly
and strategically. Looking at the charge input/output on the battery monitor will help you to
understand each device's draw in amps. Understand your charge inputs: Driving your van
will charge the van 10X faster than the solar panel and 2.5X faster than your shore power
plug.
SMART COMBINER RELAY
Your battery combiner operates on its own. Simply turn the vans engine on and a connection
will be made between Starter and House Batteries. Charge current changes automatically to
provide healthy charge to your House Battery. Incoming charge can be verified at the Battery
Monitor Screen by viewing charge current shown in amps +/-.

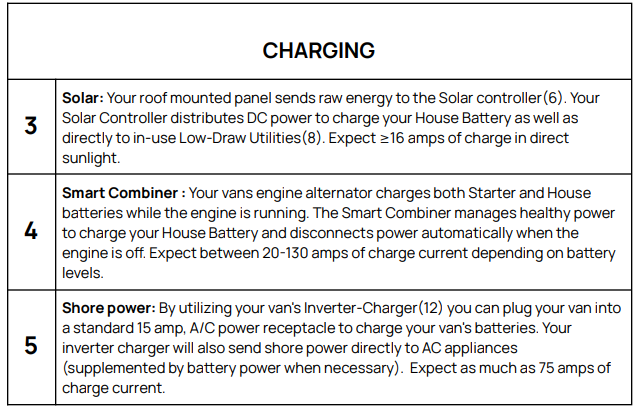

SOLAR CHARGE SYSTEM
Your Solar controller is configured for your vans power system at the VanCraft factory. The
Solar controller automatically distributes power to charge your House batteries as well as
power your Low Draw Appliances. Power distribution is adjusted automatically to
accommodate for change in temperature, solar gain, and battery state of charge. You can
monitor the performance of your solar system using the Renogy Bluetooth app on your
Smartphone. Find a link to download the app in the “helpful links” section of this manual.
You can turn output to Low Draw utility on or off at any time by pressing the right arrow key on
the face of the solar controller or by toggling the “Load output” radio button on the
smartphone app. The complete manual for the Solar controller can be downloaded from the
“helpful links” section at the end of this manual.
Warning: While using the smartphone app or viewing screen on the face of the controller
DO NOT change system settings. Incorrect power settings could result in damage to your
battery and power system.

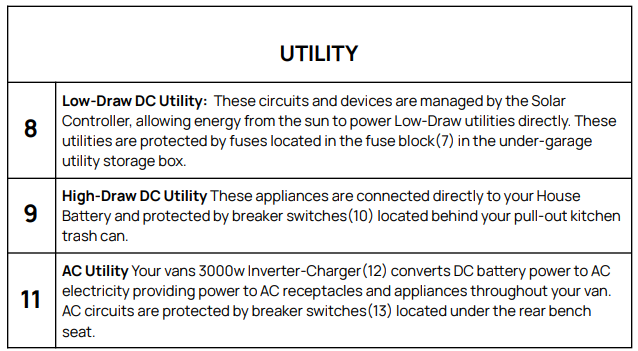

INVERTER
Your 3000w inverter-charger can be turned On/Off using the switch on the inverter control
panel located directly below the Battery Monitor Screen. When “on” the unit (located under
the rear bench seating area) will beep and a green indicator light will illuminate on the control
panel. 12V DC current is inverted to output 115V AC similar to the power found in your home.
The inverter sends power to the 15 amp 110V GFCI protected wall outlets as well as the water
heater.
To use AC power outlets or appliances, make sure the inverter is on and all AC breaker
switches are turned on. The AC breaker switch panel is located on top of the passenger side
rear wheel well cover located under the rear bench seat.
Refrain from leaving the Inverter charger on when not in use as it does draw power from the
house battery when idle.

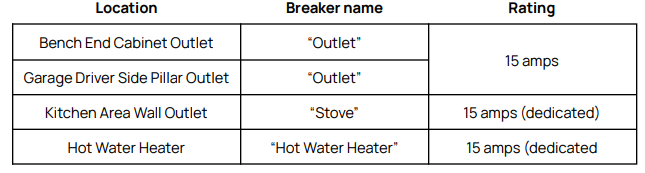

AC CIRCUIT LOCATIONS & RATINGS
Please refer to the Inverter’s manufacturer specific manual for more information and safety
warnings.
WARNING
The GFCI will not completely eliminate the risk of electrical shock. Infants and small
children may still be affected.
SHORE POWER
To charge your batteries or provide extended power to AC devices without drawing from your
House Battery you can plug in your vans shore power plug. First make sure to turn on the
Inverter-charger using the switch on the bench end cabinet. Your plug is located on the
outside of the van on the driver rear lower rocker panel. Using a 12 gauge, outdoor rated
extension cord plug your van into an AC electrical receptacle with a minimum 15 amp
dedicated circuit. Your battery charge current can be monitored on the Battery Monitor
Screen.
Note: Your shore power input can provide up to 75 amps of DC power.
LIGHTING
The main ceiling lights are turned on and off using the dimmer switch located on the bench
end-cabinet to the right of the sliding-door entrance.
The garage lights are turned on and off using the switch on the rear face of the utility box
next to the shower pump switch.
Kitchen area lights are turned on by a small round switch located on the bottom left of the
overhead cabinet above the refrigerator.
Reading lights in the bed area are turned on/off with a touch sensitive button on the face of
the light fixture. Hold your finger on the switch to dim.

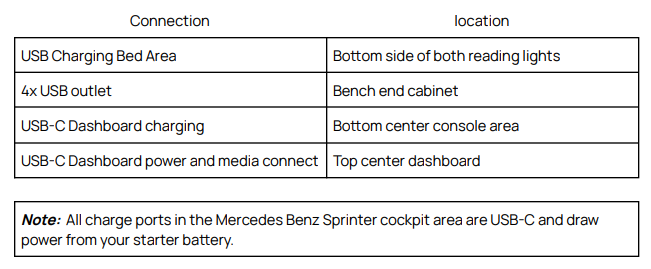

USB CHARGING
Keeping all of your devices charged on the road is made easy with the many USB outlets
located in your van. It’s helpful to know that all USB outlets are 12V DC so there is no need to
run the Inverter to power them, this also makes them much more energy efficient.
RESOLVING CHARGE SYSTEM ISSUES
If you are experiencing unusually low battery levels, or your utilities stop working all together
- work through these fixes in order.
STEP 1 [IF NO UTILITIES WORK]: Your “load output” has likely been shut off. Turn the solar
controller “load output” On again using the Right Arrow key on the face of the controller
located in the utility closet underneath the bed. This can also be achieved via APP control
when your solar controller is connected via Bluetooth to the “Renogy solar BT” app on your
smartphone.
STEP 2: Reset all DC power Breakers located behind the trash can. This will help reset any
current system errors.
STEP 3: Verify that your battery-to-battery charge relay is functioning. Note the amperage
charge level on your battery monitor with and without the vans engine running. At idle, your
battery should see an incoming charge of 30-130 amps.
STEP 4: Check that inline fuses and breakers for the engine charge system are not blown or
tripped. These can be found at both the starter battery and inside the kitchen base cabinet
on the drivers side (refer to “Fuse, Breaker and Power switch locations” below.)
STEP 5: Lastly, inside the utility bay is the master utility shutoff switch - turn this switch off
and wait 60 seconds before turning back on again (note: this will reset all stored settings for
your campers 12V electrical appliances)
FUSE, BREAKER, AND POWER SWITCH LOCATIONS

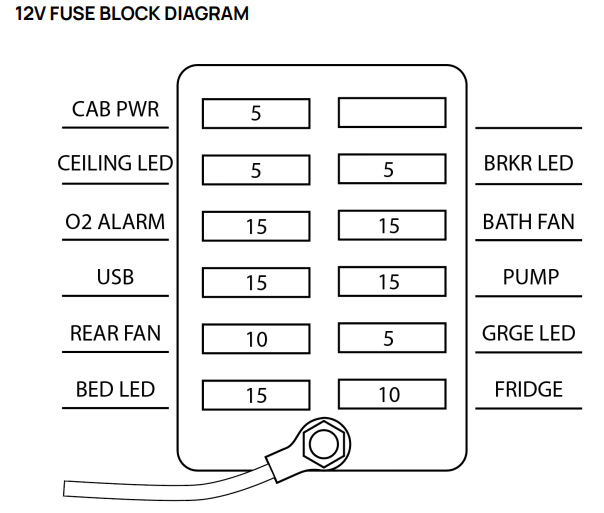

FUSE BOXES
Mercedes install fuses in three major locations in the chassis. Refer to your Mercedes
owners manual for detailed information about chassis fuse locations and accessibility.
VanCraft utilizes fuses for all 12v utilities that are controlled by the Solar Controller. These
fuses are in a fuse box inside the utility bay in the garage area of the van.
NOTE: Always replace fuses with fuses of the same size and amperage rating.
Fuses can also be found here:
● The starter battery connection below the driver footwell for the battery-to-battery
charge system.
● In the house battery box for the optional air conditioner.
● In the driver's seat base main fuse bay for the optional audio system, bumper
mounted light pods, and the diesel heater.
DC BREAKERS
Breaker switches protect power leaving the battery compartment to larger draw utilities in
the van. In the kitchen base cabinet (behind the trash can drawer) are three breakers for:
1. Power inverter/Charger
2. Solar controller
3. Battery-to-battery charge relay
These breakers trip if they are overloaded. If they are tripped in the open position, they
should be closed to be reset. If the breaker continues to trip open, their corresponding
device is pulling too many amps due to misuse or internal failure.
CABIN CLIMATE CONTROL
OPTIONAL AIR CONDITIONING
Before using the air conditioner, first familiarize yourself with its included instruction manual.
Your air conditioner is designed for off-grid style 12V DC power systems. It accomplishes this
with its included “ECCO” run mode. “ECCO” mode cools your cabin at a max of an 18 amp
draw. All other run modes are designed for units with “Shore Power” connections or onboard
generators. It is possible to run the air conditioner on other modes for short periods of time
but be advised that it will use large amounts of available power quickly. Like the Power
Inverter, the air conditioner is individually connected to the battery bank and therefore has
no reference to the battery's output to other utilities in use. While using the air conditioner,
try to conserve power usage from other utilities as much as possible to conserve battery
draw. Other power saving tips include deploying the awning whenever possible, and only using the air conditioner when the window covers are installed.
USING THE EXHAUST FAN
Vans without a roof air conditioner have an exhaust fan and roof vent. Use this fan to prevent
harmful gasses from building up inside the living quarters of the van, remove cooking odor
from the van, and draw cool or hot air from the vans dashboard HVAC system to the rear of
the van.
Only open the roof vent a quarter of the way while the van is in motion. Use the lock when
closed.
DIESEL CABIN HEATER
Before using the cabin diesel heater, first read the included instruction manual. The heating
system uses diesel from the Sprinter’s primary fuel tank to fire a small furnace for heating
cabin air. The heater can be run with the van’s engine off and the inverter does not need to be
on. Follow instructions in the heater manual to turn the unit on and off and adjust cabin
temperature.
NOTE: The diesel-fired furnace will not operate if the vehicle’s fuel tank level is under 1/8 tank.
NOTE: It is normal for the interior lights to flicker slightly while the furnace starts.
NOTE: Do NOT turn off the 12V power system system if the furnace is on. This includes
breakers, fuses, master power disconnect switch, and the solar controller itself. Turn the
furnace switch to OFF on the heater controller only, then wait at least 10 minutes for the
furnace to shut down properly.
TROUBLESHOOTING THE DIESEL HEATER
Troubleshooting steps can be found in the heaters instruction manual. If you are having a
tough time starting the heater check that:
● The diesel tank is above 1/8 full
● The battery system is sufficiently charged (12.5V minimum)
● You're operating the heater below 10,000 feet of elevation.
WATER SYSTEMS

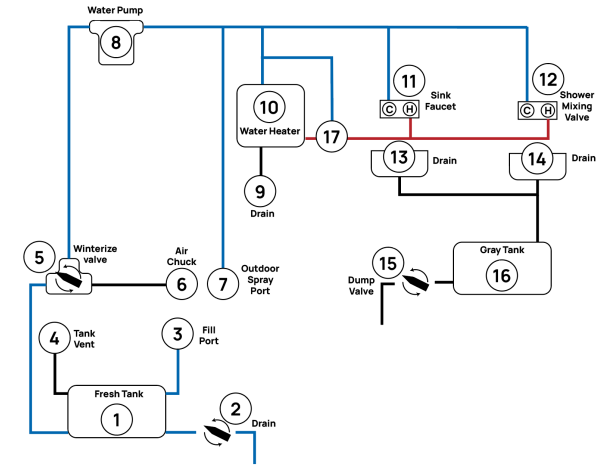

Your van comes equipped with a complete water system. Your 40 gallon Fresh Water Tank ( 1 )
Distributes water throughout your van with a 3 GPM water pump (8). Water is fed to your
outside Spray Port ( 7 ), Water Heater ( 10 ), Kitchen Sink ( 11 ), and Inside Shower ( 12 ).
Drained water is collected in an exterior mounted, 18 gallon Gray water tank ( 16 ).
FRESH WATER TANK ( 1 )
The 40-gallon water tank is housed inside the utility cabinet in the rear of the van, under the
bed. The tank can be drained using the drain valve ( 2 ). The shower drain valve is mounted to
the floor inside the utility cabinet. Open the access door on the rear face of the utility
cabinet under the bed and look down to the floor. Water level for the freshwater tank can be
viewed at the gauge directly above the water fill port, or inside the van on the hot water
control panel (located on the kitchen overhead cab).
FILLING THE WATER TANK
The water-fill port is located on the bottom left of the water control panel on the front face of
the utility box (under the bed).
● Unscrew the cap on the fill-port.
● Using a standard garden hose (it is helpful to have a spray nozzle attached), press the
hose into the fill port opening and then begin the flow of water to fill the tank.
● As the tank fills, the tank fill gauge will read its level. If it is difficult to read the gauge,
turn on the garage lights to illuminate the gauge.
● When the tank gauge reads full, turn off water flow from the gauge and screw the fill
port cap back on.
NOTE: It is important to clean up any spilled water immediately to avoid damage to the
campervan’s cabinets, flooring, and other systems..
CLEANING THE TANK
● Fill the shower water tank half way and mix in ⅜ cup of household bleach into the tank
before completely filling the tank with a total of 18 gallons of fresh water.
● Let the full tank sit for 4 to 8 hours.
● Run the water tank dry by turning on the shower pump and running 18 gallons of water
through the shower head.
● Refill the water tank with fresh water and drain several times to flush the system.
DRAINING THE TANK
The water tank can be drained by running the outdoor shower until the tank is empty.
GRAY WATER TANK ( 16 )
The 18 gallon gray water tank is located underneath the van on the front driver side. This tank
collects water from the kitchen sink ( 13 ) and indoor shower drains ( 14 ). The tank can be
dumped by pulling the gray water dump valve ( 15 ) under the van just behind the driver door.
It is recommended to clean your gray water tank periodically using standard gray water tank
treatment solution to prevent odor. Your gray water tank's fill level can be monitored on the
dual level gauge on the water control panel above the sink. Always use sink and shower drain strainers to prevent foreign objects from draining into the
gray water tank. Food scraps, hair, and litter will clog your drain and can cause damage to your
gray dump valve. It is also important to note that the gray water tank is mounted on the exterior of the van and is therefore susceptible to freeze damage as well as collision from rocks and off-road obstructions. Refer to the winterization instructions for information on preparing your van for freezing conditions. Always pay close attention to the driver front undercarriage when
maneuvering the van over obstructions.
WATER PUMP ( 8 )
Your van's water pump can be turned on and off using one of two water pump switches. The
water pump is “on” ONLY when the switch LED indicator ring light is illuminated. Switch one is
located on the plumbing control panel on the front face of the utility cabinet. Switch two is
located on the hot water heater control panel on the front face of the kitchen overhead
cabinet. When the pump is on all water systems in the van are under pressure. Make sure all fixtures(faucets & shower heads)are closed before turning on the pump.
It is recommended to leave the water pump “off” when not in use.
ELECTRIC WATER HEATER ( 10 )
Your vans on-board 3-gallon electric water heater is located under the rear bench seat. This
hot water heater in combination with a hot water mixing valve ( 17 ) provides ample hot water
for showering and clean-up.
To turn the water heater on:
1. Make sure the inverter-charger and “hot water heater” AC breaker are on.
2. Make sure the hot water heater is full of water (turn on the water pump and open the
sink faucet on “hot”until water comes out).
3. Turn the 60-minute timer switch on. (located on the hot water heater control panel on
the front face of the kitchen overhead cabinet).
4. The hot water heater will be hot in 20 minutes.
Note: The hot water heater uses a considerable amount of electricity while the water is
heating. A timer switch is used to prevent the possibility of leaving the hot water heater on
for extended periods of time unintentionally. To conserve house battery power while
heating water, run the vans engine while the water heater is on, or plug in the Shore power
plug.
OUTDOOR SPRAY PORT (7)
Located on the bottom front face of the utility cabinet, your spray port gives quick access to
pressurized water for outdoor use. An included quick connect hose can be used for clean up
of gear and equipment before storing in the vans garage. Pair this hose with an optional door
mounted hot water heater for a heated outdoor shower. When connecting the hose to the
quick connect port, make sure the pump is not on.
USING THE OUTDOOR SHOWER
Your outdoor shower can be used for many different purposes. Because it is the only hot
water source in your van, it not only is a great way to take a shower but also serves an
excellent utility for outdoor dish cleanup.
WARNING
This accessory hot water shower is designed for use in areas with direct airflow to the
outdoors. NEVER use the hot water heater with the rear cargo door closed. NEVER leave the
low pressure propane canister connected while the water heater is not in use or
unattended. ALWAYS turn the hot water heater igniter switch to the “OFF” position when
not in use. And only ever open the water supply valve to the water heater when in use,
NEVER LEAVE THE WATER SUPPLY BALL VALVE ON WHEN THE SHOWER IS NOT IN USE.
Please follow the steps below to operate your shower:
1. Make sure the shower hose, shower head, and shower water flow are connected
together firmly and that the entire hose assembly is connected firmly to the shower
heater.
2. Connect propane to the low pressure regulator.
3. Turn on the water heater flame igniter (located on the bottom of the water heater).
4. Turn water flow to the water heater “ON” using the ball vale on the bottom of the
heater.
5. Turn on the water pump switch, water will then flow through the heater and out of the
shower head. You can hear the igniter clicking before igniting flame visible through
the three water droplet icons on the front face of the water heater.
6. Adjust water temperature using the control knobs on the face of the heater.
7. You can limit water flow or stop the flow of water completely using the flow
adjustment on the shower head.
8. When done, turn the water pump switch OFF.
9. Open the shower head flow restrictor valve and release any residual water from the
line by placing the shower head below the tank and shaking firmly.
10. Immediately wipe up and water that may have dripped inside the van.
NOTE: Always be sure to winterize your shower if you are camping or leaving your vehicle in
freezing weather conditions.
KITCHEN SINK (11)
The sink is pressurized by the water pump in the rear of the van. Press the water pump switch
above the sink. The pump is on and the sink is ready to use when the switch is illuminated.
NOTE: Never leave the water pump on when not in use or when unattended. Always confirm
the spray down port hose is DISCONNECTED before turning the pump on from inside the van.
KITCHEN SINK DRAIN (13)
Do not pour chemicals, food scraps, or other items harmful to the gray water tank down your
sink drain.
NOTE: Always use the included sink strainer to protect the drain from items that may cause
clogs.
INDOOR SHOWER & BATHROOM (12 & 14)
Your indoor shower and bathroom is an enclosure designed for showering and the use of a
supplied portable cartridge toilet.
SHOWERING
For the best shower experience follow these steps:
● Before taking a shower, remove the toilet and wooden floor panels.
● For the best drain performance, park the van on level ground.
● Be sure the water heater has been heating for a minimum of 20 minutes.
● Be sure the water pump is on.
● Always use the exhaust fan while showering to prevent moisture damage.
● Be sure the toilet paper dispenser is in the closed position.
● While inside the shower make sure the shower door is closed completely to avoid
water leaking out the shower enclosure.
● Conserve water by leaving the shower head off when not in use.
After showering check to make sure no water has leaked through the door and onto the floor.
Make sure all water is wiped off of cabinets and the floor immediately to prevent water
damage. Replace the wooden floor so you can use the bathroom and not get your feet wet.
USING THE CARTRIDGE TOILET
Your included Thetford cartridge toilet has its own manual. You can find a link to a digital copy
of this manual in the helpful links section at the end of this manual.
The toilet can become heavy when full. It is recommended to dump the toilet as often as
possible to keep it lighter and easier to maneuver in and out of the van.
WINTERIZING YOUR WATER SYSTEM
Any time there is a chance of your van becoming exposed to below freezing temperatures, it
is vital that you winterize your plumbing to avoid breakage. While this process can be an
all-day project in most RVs, our plumbing system is designed for rapid transition in and out of
Winterization Mode . Follow these steps in order to prepare your vans plumbing for freezing
temps.
1. Drain your fresh water tank. Open the plumbing access door located on the rear face
of the utility cabinet (below the water control panel). Inside you’ll see a series of
hoses and your water tank. Reach inside the cabinet and turn the drain valve (located
on the floor, inside the utility cabinet). Leave the drain open.
2. Drain the Grey water tank. Open the dump valve on the gray water tank and leave it
open.
3. Activate Winterize valve. Turn your winterize valve so that it points to “Winterize”.
The winterize valve is located on the plumbing control panel on the rear face of the
utility cabinet, under the bed.
4. Setup Outdoor Shower. Make sure the water pump is off. If your van is equipped with
an out-door hot water heater, connect your spray down port hose to the water heater
and make sure the shower head is turned off so that no water can come out.
5. Drain the Electric Hot Water Heater. With the water pump off, turn the hot water
valve in the sink and shower on. On the water heater, turn the drain valve on (The drain
valve is a gray spigot mounter on the bottom left face of the heater). Water should
drain on the ground. Leave the drain open . Close the sink and shower valves.
6. Clear your lines. Make sure the sink faucet, shower valves, and spray down port are in
the off position. Using a compressor with a minimum output of 45 PSI, equipped with a
standard tire fill air chuck, connect the air chuck to the schrader valve on the bottom
plumbing plate (located on the bottom face of the utility cabinet to the left of the
outdoor spray down port) and apply compressed air to your system.
a. While the system is under pressure, open the shower cold water valve until
water stops flowing, then close the valve.
b. Open the shower hot water valve until water stops flowing and then close the
valve.
c. Open the sink cold water valve until water stops flowing, then close the valve.
d. Open the sink hot water valve until water stops flowing, then close the valve.
e. Open the hot water tank drain valve until water stops draining, then close the
drain valve.
f. Open the outdoor shower head and turn the water flow adjustment (blue
knob) to max. Turn off the shower head when water stops flowing.
7. Remove sink aerator. Grab the tip of the faucet and remove the faucet aerator by
turning counter clockwise. Store the aerator somewhere safe and re-install when
un-winterizing your system.
At this point there should be no water in your system and you should be clear for takeoff. In
extreme and extended cold, it is recommended to poor RV antifreeze solution in both shower
and sink drains to fill the P-traps. It is also possible to fill the entire system with antifreeze for
added protection by connecting a hose to the schrader valve and inserting the hose into a
bottle of antifreeze. Run the water pump and open all taps until antifreeze flows at each
orifice. Flush the system with clean water to un-winterize.
WARNING
Standing water left unattended in the van can cause damage to cabinets, floor, electronics
and other components found in your campervan. Always take immediate action to clean up
water spills and fix leaks in plumbing systems. If a leak cannot be fixed, drain all holding
tanks until your van can be brought to a qualified service station for repair.
Lastly, failure to winterize plumbing systems before the onset of below freezing
temperatures can result in water leaks and subsequent water damage.
REFRIGERATOR
The refrigerator is located under the countertop on the left side of the kitchen base cabinets
located on the driver side of the vehicle. It is designed to run all the time and can only be
turned off by disconnecting its power cord or disconnecting all utility from the solar
controller via the app or main switch (under the bed in the utility box). Refer to the
manufacturer's instruction manual for specific operation and warranty information.
NOTE: Always run the refrigerator on “Low-Speed” mode.
NOTE: NEVER remove the drain plug without first removing the fridge from the campervan.
Always remove the refrigerator before draining.
ADJUSTING REFRIGERATOR SETTINGS
The refrigerator control panel is accessible by opening or removing the middle drawer in the
kitchen base cab (Rover only) or under the sink on the left side wall of the cabinet (Rover XL
only). Set the refrigerator to “Low Speed” mode every time the refrigerator is turned off by
power reset or after removal. Press “Mode” repeatedly until the “Low Speed” green light is
illuminated to the right of the control screen.
REMOVING THE REFRIGERATOR
In order to clean the refrigerator, repair or send it in for warranty, or to access the Solar
Battery Bank, the refrigerator will need to be removed.
1. Remove the hinge screws holding the refrigerator lid to the countertop.
2. Unplug the refrigerator (plug is located next to the control screen).
3. Remove fridge baskets and all food items.
4. Pull the refrigerator upward to remove.
INDUCTION STOVETOP
Some vans are equipped with an optional 1600W single burner induction cooktop. The
cooktop runs on 110V AC electricity, so the power inverter must be on to use the cooktop.
Please monitor your batteries power consumption closely when using the cooktop, it
consumes power quickly.
NOTE: Induction compatible cookware is required. (minimum 4” diameter, magnetic)
NOTE: Refer to the manufacturer’s user guide provided for complete instructions.
SLEEPING AND SEATING SYSTEMS
SWIVEL SEAT
The front passenger seat has a seat-base swivel system, allowing it to rotate towards
the rear of the van. Before rotating the seat, adjust it all the way forward to prevent it
from rubbing or scratching the vehicle’s door trim.
While standing next to the seat or outside the open passenger door, use the red
lever, located below the front-center seat cushion, to rotate the seat
counterclockwise. Use the lever again to unlock and rotate the seat further or back to
the forward position.
NOTE: Never travel in the campervan with the seat facing backward. Never rotate the
seat 360° to prevent the seat belt from twisting.
REAR BENCH
The rear bench-seat has room to seat two (2) passengers (Rover) and four (4) passengers
(Rover XL). There are type-1 lap-belt style seat belts installed for each passenger. When the
van is in motion all passengers MUST wear seat belts.
The cushioned horizontal bench-back folds up to extend the sleeping area of the bed. Be
conscious and attentive to make sure bedding is not pinched in the latch when engaging the
bench-back to prevent damage to both the bench-back hardware and your bedding. Make
sure both latches are engaged, by pushing down on the bench-back, before climbing up into
bed.
Do not try to collapse the bench back from on top of the bed. First climb out the bed and
stand on the ground while lowering the bench back. Release the latches by pushing upward
on the latch triggers.
MAIN SLEEPING AREA
The elevated bed above the garage is designed to utilize the extension provided by the
bench back when in the upright position. The recommended sleeping position is to place
your head towards the rear of the vehicle and your heels resting on the bench-back
extension.
BENCH SLEEPING
There is enough room for a child under 4’ tall to sleep horizontally on the Rover bench seat.
The Rover XL L-bench offers an additional sleeping surface for an adult up to 6’ tall. There is
also an optional Bed-to-Bench conversion kit for the Rover XL model.
Sleeping with your head under the bench-back when it is in the upright position is prohibited.
It is important that if any passengers are sleeping on the bench that the bench back is first
locked into place and tested for security to prevent the bench-back from falling on a
passenger sleeping below.
EXTERIOR ACCESSORIES
FRONT BUMPER LIGHT PODS
Your campervan’s two-stage LED light pod system is integrated into the front bumper and is
turned on via two red switches (to the right of the steering column). If the switches are
illuminated red, the lights are turned on.
The white lights are intended for low light conditions, while the yellow lights are designed to
cut through fog and snow. Like all electrical systems in your van, prolonged use could result
in a dead battery.
AWNING
To best learn to operate your awning, refer to the included Thule manual. A how to
video can be viewed here:
The awning crank rod is stored under the bed on the driver-side wall. The awning
pitch adjustment screws have been adjusted to avoid the awning form hitting the top
of the slider door when in the open position.
LADDER
Your rear door ladder has a weight rating of 275lbs. Be careful when climbing up and
down the ladder.
WARNING
DO NOT CLIMB ON THE LADDER WITH THE DOOR OPEN. Standing on the ladder with
the door open will damage the door and hardware.
CAMPERVAN REGULAR MAINTENANCE
BUTCHER BLOCK COUNTERTOPS
VanCraft campervans come standard with solid oak butcher block countertops. These
beautiful countertops are chosen for their elegance, durable makeup, and ease of
maintenance. They are treated before installation with a 3-day soak in our favorite butcher
block oil to seal them from water and stain intrusion.
Over time, your countertops will encounter stains and normal wear-and-tear. Spot treating
and refinishing the butcher block is a regular part of campervan ownership. Additionally, your
countertops will need regular re-applications of a good butcher block oil to keep them sealed
and protected.
We recommend applying a nice sealant layer of oil every 4-6 weeks, when used regularly. You
can find butcher block oil at your local hardware store or at many online retailers. Simply
apply with a cloth and let soak for 2-3 hours before wiping away with a clean cloth. For more
intensive spot treatment and refinishing, sand the oil into the grain of the wood using
120-200 grit sandpaper.
ROOF SEALANT
Your vans roof accessories are sealed with a coating of “RV Lap Sealant” as an extra layer of
protection from water intrusion, where fasteners penetrate the roof structure. Like all RV’s
this lap sealant should be inspected and re-coated every 3 years. This can take place at any
RV service center or can be done easily yourself.
LATCH ADJUSTMENT
Your van's cabinet drawer and door latches may fall out of adjustment with time. Loading
drawers with heavy cargo, off road driving, or a shift in climate can add to the misalignment of
your latches. It is important to keep your latches adjusted properly so that your drawers,
doors, and cargo stay put.
All latches have slotted screw holes so they can be aligned when necessary. Use a phillips
screwdriver to gently loosen the latch and re-aline before tightening.
SHOWER CAULKING
All seams in your shower box are sealed with silicone type calking. It is important to pay close
attention to the condition of these caulked joints and re-apply caulking when needed to
prevent water damage to your van.
STORING YOUR VAN
If you’re planning to store your van for an extended period of time, follow these steps
to ensure your van is prepared for storage.
● Follow Mercedes Instructions for storing your van (see extended parking).
● Winterise your plumbing: there must be no water in your van.
● Disconnect utility from your solar controller (use the battery switch in the
utility box)
● Turn off the charge relay breaker switch
● Turn off the solar breaker switch
● Turn off the Inverter-charger breaker switch
EXTERNAL LINKS
Resetting Your Vans Electrical System
Solar Charge Controller
Air Conditioner
Refrigerator
Awning
